AM/FM-Super Dominante W102n Edelklang Typ 1132

Funkwerk Dresden, VEB, RFT (Ostd. vorm. H. Mende & Co.)

  • Year
  • 1960/1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 16527

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 8 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: AM/FM-Super Dominante W102n Edelklang Typ 1132 - Funkwerk Dresden, VEB, RFT
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 653 x 260 x 280 mm / 25.7 x 10.2 x 11 inch
  • Notes
  • "Edelklang" mit getrenntem LS.

    Lautsprecherteil wiegt 11 kg.

    1 perm.-dyn. breitband-Ovallautspr. 6 W und 1perm.-dyn. Hochtonlautspr. 1,5 W

    Steuergerät und Box haben gleiche Aussenabmessungen, so dass man sie über- oder nebeneinander aufstellen kann.

    Eine Besonderheit ist die von der Rückseite mit Holzmaserung bedruckte obere Abdeckung aus Glas. Bei der Box sind sogar Ober- und Unterseite mit einer solchen Glasabdeckung versehen, so dass sie auch senkrecht aufgestellt werden kann.

  • Net weight (2.2 lb = 1 kg)
  • 14 kg / 30 lb 13.4 oz (30.837 lb)
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Mentioned in
  • Werkangabe
  • Literature/Schematics (1)
  • -- Original-techn. papers.

 Collections | Museums | Literature

Collections

The model AM/FM-Super Dominante is part of the collections of the following members.

 Forum

Forum contributions about this model: Funkwerk Dresden,: AM/FM-Super Dominante W102n Edelklang Typ 1132

Threads: 1 | Posts: 2

Hallo zusammen,

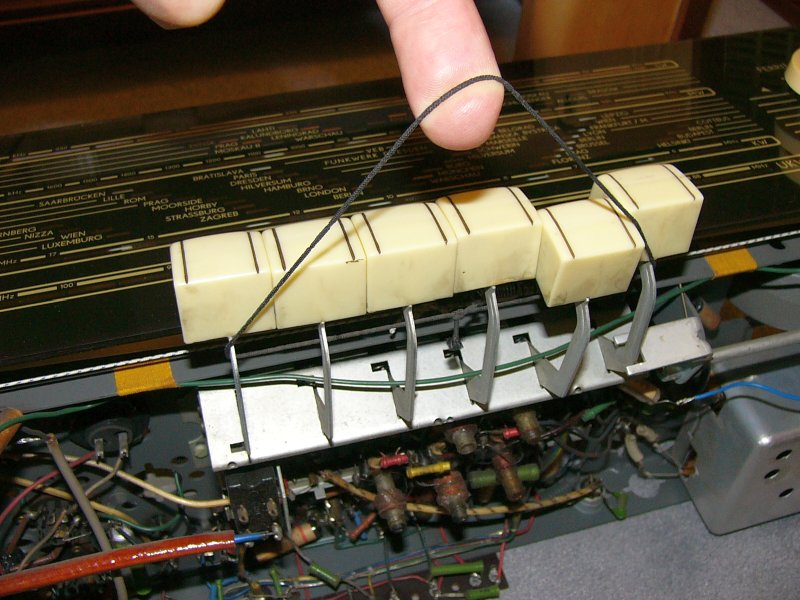

an manchen Radios gibt es vorne eine Schnur, die um die Tastaturhebel geknotet ist -> siehe angehängtes Bild. Ist das eine Montagehilfe, um das Chassis ins Gehäuse zu ziehen, oder welche Funktion hat diese Schnur?



Herzliche Grüße

Gerhard Wickern

Attachments

Gerhard Wickern, 29.Mar.14

Weitere Posts (2) zu diesem Thema.
