Musica 517K; Graetz, Altena (ID = 124783) Radio

Musica 517K; Graetz, Altena (ID = 463459) Radio

Musica 517K; Graetz, Altena (ID = 1027620) Radio

Musica 517K; Graetz, Altena (ID = 1027621) Radio

Musica 517K; Graetz, Altena (ID = 1027622) Radio
Musica 517K; Graetz, Altena (ID = 105419) Radio Musica 517K; Graetz, Altena (ID = 105421) Radio
Musica 517K; Graetz, Altena (ID = 52535) Radio Musica 517K; Graetz, Altena (ID = 123246) Radio
Musica 517K; Graetz, Altena (ID = 135681) Radio Musica 517K; Graetz, Altena (ID = 135682) Radio
Musica 517K; Graetz, Altena (ID = 135683) Radio Musica 517K; Graetz, Altena (ID = 135684) Radio
Musica 517K; Graetz, Altena (ID = 135685) Radio Musica 517K; Graetz, Altena (ID = 135686) Radio
Use red slider bar for more.
Musica 517K; Graetz, Altena (ID = 105419) Radio

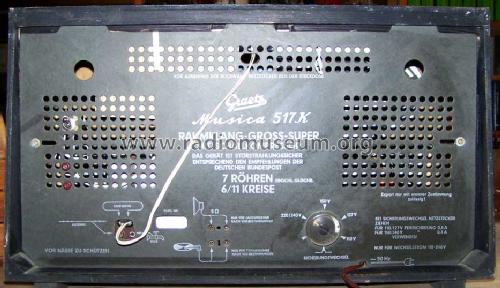

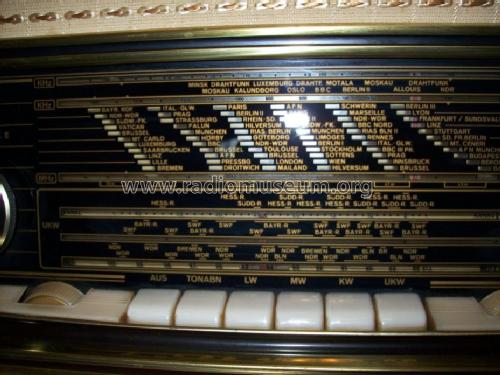

Graetz, Altena: Musica 517K [Radio] ID = 105419 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Musica 517K, Graetz, Altena (Westfalen)

Country:  Germany
Manufacturer / Brand:  Graetz, Altena (Westfalen)
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10,7 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 127, 150, 220, 240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Musica 517K - Graetz, Altena Westfalen
Material Wooden case
Dimensions (WHD) 610 x 353 x 260 mm / 24 x 13.9 x 10.2 inch
Notes Gerät mit Schallkompressor
Net weight (2.2 lb = 1 kg) 10.6 kg / 23 lb 5.6 oz (23.348 lb)
Collectors' prices
External source of data Wiesmüller
Source of data Lange, Schaltungen der Funkindustrie
Literature/Schematics (1) -- Original-techn. papers.
