Majestic 5299U/S
Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke)
- Year
- 1961/1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 246575
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix

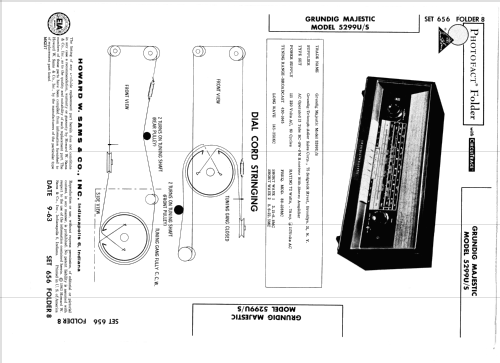

Photo from SAMS Set 656 Folder 8, Date 9-63.

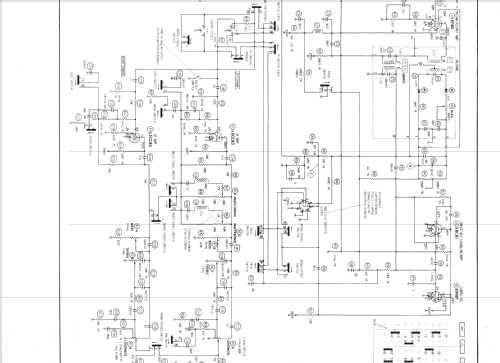

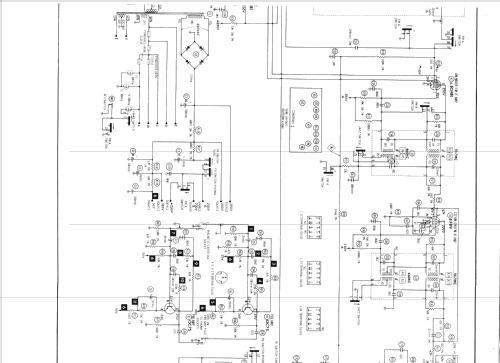

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
- Tuned circuits
- 8 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 115; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Majestic 5299U/S - Grundig Radio-Vertrieb, RVF,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 670 x 280 x 275 mm / 26.4 x 11 x 10.8 inch
- Notes
-
Grundig model 5299 U/S Stereo ia an AC operated 13 Tube LW-BC-SW1-SW2-FM Receiver with 2 Transistor Pre-Amplifier for Magnetic Pick-up.
Prepared for connecting of a Multiplex Adapter, e.g. the Grundig Decoder (1)
Sales were made by Grundig-Triumph-Adler Sales Corp, Brooklin, NY.
Grundig 5299 U/S Stereo ist ein Exportmodell für die USA. Siehe auch die inländische Ausführung Steuergerät 5299 Stereo.
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 9-63, set 656, Folder 8.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
