• Jahr
  • 1956 ?
  • Kategorie
  • Rundfunkempfänger (Radio - oder Tuner nach WW2)
  • Radiomuseum.org ID
  • 78258

Klicken Sie auf den Schaltplanausschnitt, um diesen kostenlos als Dokument anzufordern.

 Technische Daten

  • Anzahl Röhren
  • 8
  • Anzahl Transistoren
  • Hauptprinzip
  • Superhet allgemein; ZF/IF 473/10700 kHz; 2 NF-Stufe(n)
  • Anzahl Kreise
  • 7 Kreis(e) AM     10 Kreis(e) FM
  • Wellenbereiche
  • Langwelle, Mittelwelle, Kurzwelle und UKW.
  • Betriebsart / Volt
  • Wechselstromspeisung / 110; 127; 160; 220; 240 Volt
  • Lautsprecher
  • 4 Lautsprecher
  • Material
  • Gerät mit Holzgehäuse

Die GFGF Zeitschrift Funkgeschichte bringt interessante Artikel zu Radios, Funkwesen und Medien. Bei Radiomuseum.org finden Sie die vollständigen Hefte früherer Ausgaben als PDF zum Download.

  • von Radiomuseum.org

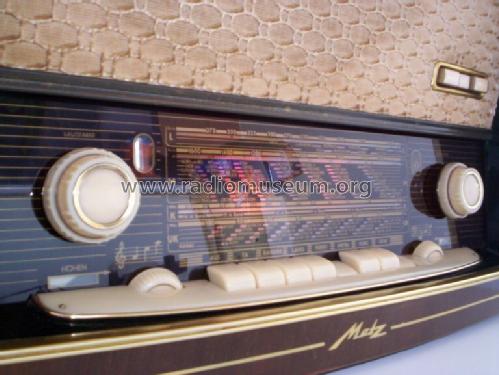

  • Modell: 409/3D [Inland] - Metz Transformatoren- und
  • Form
  • Tischgerät, Tasten oder Druckknöpfe.
  • Abmessungen (BHT)
  • 26 x 15.5 x 10 inch / 660 x 394 x 254 mm
  • Bemerkung
  • Metz Modell 409/3D hat 3 extra Tasten für Sprache / Jazz / Konzert.
    AM-Bandbreite umschaltbar. Ferritantenne nicht drehbar.

    Siehe auch Exportversion 409/3D mit zwei Kurzwellen-Bereichen und UKW bis 108 MHz.

  • Literatur/Schema (1)
  • -- Schematic
  • Autor
  • Modellseite von Gottfried Silberhorn angelegt. Siehe bei "Änderungsvorschlag" für weitere Mitarbeit.

 Sammlungen | Museen | Literatur

 Forum

Forumsbeiträge zum Modell: Metz Transformatoren: 409/3D

Threads: 1 | Posts: 1

Does anybody have information about this model?

After resurecting an American version of this radio, I am amazed to find that it came with a partial circuit board (just the amp section with tube sockets in it), bipolar electrolytic capactors on the speakers, use of of an EF86 in the amp section, to just name a few things.

It does lack the build quality like its competitors, SABA, Telefunken, and Grundig, but the big speaker and the push pull amp, makes this radio a "screamer"!

Since there is no schematic on RMorg. , I had to sort of figure out what's going on, by using the listed schematics for the 408/3D and 410/3D models.

The only major flaw is, that they placed the self biasing resistor directly on the circuit board(rated at 1 watt). Of coarse, the resistor was open, and needed to be replaced. When I recapped the board, I placed a 5 watt sandstone resistor seperated from the board for heat disipation.

Is there any advice someone can give regarding the tuner/clutch mechanism?

Thank you

Omer

Omer Suleimanagich, 28.Sep.05
