B8E-92A

B8E-92A; Philips Ibérica, (ID = 2079901) Radio

B8E-92A; Philips Ibérica, (ID = 2079902) Radio

B8E-92A; Philips Ibérica, (ID = 2079903) Radio

B8E-92A; Philips Ibérica, (ID = 2079904) Radio

B8E-92A; Philips Ibérica, (ID = 2079905) Radio

B8E-92A; Philips Ibérica, (ID = 2079906) Radio

B8E-92A; Philips Ibérica, (ID = 2079907) Radio

B8E-92A; Philips Ibérica, (ID = 2079908) Radio

B8E-92A; Philips Ibérica, (ID = 2079909) Radio

B8E-92A; Philips Ibérica, (ID = 2079910) Radio
B8E-92A; Philips Ibérica, (ID = 1187638) Radio B8E-92A; Philips Ibérica, (ID = 231017) Radio
B8E-92A; Philips Ibérica, (ID = 1187639) Radio B8E-92A; Philips Ibérica, (ID = 1187640) Radio
B8E-92A; Philips Ibérica, (ID = 1187643) Radio B8E-92A; Philips Ibérica, (ID = 1187645) Radio
B8E-92A; Philips Ibérica, (ID = 1187647) Radio B8E-92A; Philips Ibérica, (ID = 1187648) Radio
B8E-92A; Philips Ibérica, (ID = 1731592) Radio
Use red slider bar for more.
B8E-92A; Philips Ibérica, (ID = 1187638) Radio
Philips Ibérica,: B8E-92A [Radio] ID = 1187638 933x429
Select picture or schematic to display from thumbnails on the right and click for download.
For model B8E-92A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: ECC85 ECH81 EF93 EF80 EM80 EABC80 ECC83 ECC83 EL86 EL86 EZ81
Main principle Superheterodyne (common); ZF/IF 470/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: B8E-92A - Philips Ibérica, COPRESA,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 663 x 306 x 282 mm / 26.1 x 12 x 11.1 inch
Notes

Preparado para caja acústica externa AD5004/20. External acustical box AD5004/20 sold separately.

Price in first year of sale 9'510.90 ESP

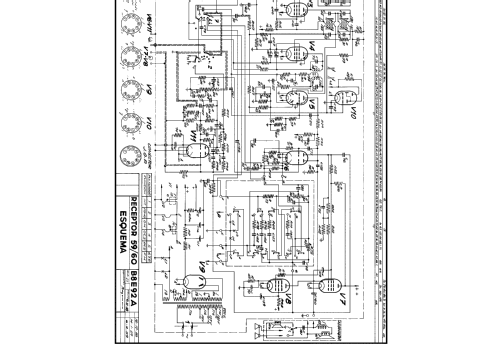

Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (4) Anuncio ABC enero 1962

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
