TV-2706

TV-2706; Phonola SA, FIMI; (ID = 770801) Television

TV-2706; Phonola SA, FIMI; (ID = 770802) Television

TV-2706; Phonola SA, FIMI; (ID = 770804) Television

TV-2706; Phonola SA, FIMI; (ID = 770805) Television

TV-2706; Phonola SA, FIMI; (ID = 770806) Television

TV-2706; Phonola SA, FIMI; (ID = 770807) Television
TV-2706; Phonola SA, FIMI; (ID = 2407568) Television
Use red slider bar for more.
TV-2706; Phonola SA, FIMI; (ID = 2407568) Television
Phonola SA, FIMI;: TV-2706 [Television] ID = 2407568 1186x1500
Select picture or schematic to display from thumbnails on the right and click for download.
For model TV-2706, Phonola SA, FIMI; Saronno (VA):
Immagine da schemario TV C.E.L.I. n°1 pagina 163

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1956 Category: Television Receiver (TV) or Monitor
Valves / Tubes 22: PCC84 PCF80 EF80 EF80 EF80 EF80 PL83 EF80 EF80 EF80 EABC80 EL84 PCF80 PCL82 EB91 ECL80 PL36 PY81 5X4G 5Y3 DY86 27RP4
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 100-270 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: TV-2706 - Phonola SA, FIMI; Saronno VA
Shape Console, Highboy (legs > 50 %).
Notes Cinescopio 27" 90° tipo sferico-magnetico.
VHF (S4).
FI 4 stadi 40 MHz sistema intercarrier.
Comandi frontali.
Presa per comando a distanza.

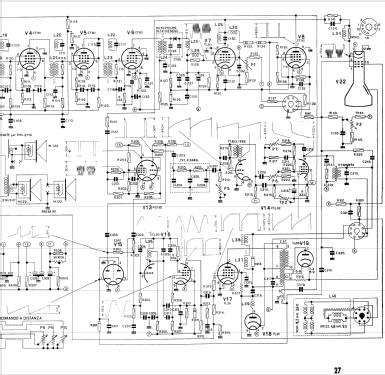

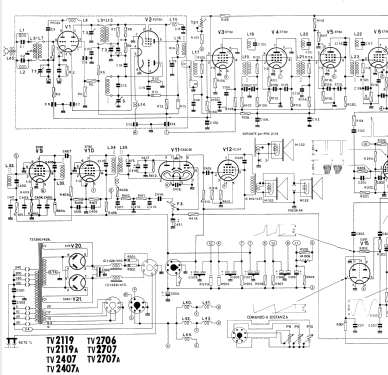

Literature/Schematics (1) -- Schematic (Schemario dei Televisori Phonola 1952 al 1964)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
