RA435A AM/FM (RA435.AM.FM)

RA435A AM/FM ; Radiola marque (ID = 1301876) Radio RA435A AM/FM ; Radiola marque (ID = 1301877) Radio
RA435A AM/FM ; Radiola marque (ID = 1301878) Radio RA435A AM/FM ; Radiola marque (ID = 1301879) Radio
RA435A AM/FM ; Radiola marque (ID = 1301880) Radio RA435A AM/FM ; Radiola marque (ID = 1859656) Radio
Use red slider bar for more.

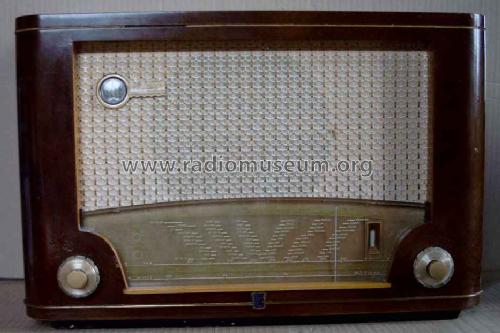

RA435A AM/FM ; Radiola marque (ID = 1301876) Radio
Radiola marque: RA435A AM/FM [Radio] ID = 1301876 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA435A AM/FM (RA435.AM.FM), Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EF80 EC92 ECH81 EF85 EM34 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: RA435A AM/FM - Radiola marque
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 520 x 340 x 230 mm / 20.5 x 13.4 x 9.1 inch
Notes

4 gammes d'ondes: GO 870 à 2000 m, PO (ondes moyennes) 185 à 580 m, OC 16.5 à 50.5, et FM sur 3 à 3.43 m. Cadre antiparasites incorporé préorientable, antenne dipole incorporée FM. Prises pick-up commutée, HP supplémentaire, antenne extérieure.

Emplacement pour l'Interphone AF7800.

Équivalent au Philips BX534A.


Skaka zweisprachig: Wellenbezeichnungen in französisch und deutsch; die deutschen Stationsnamen in deutscher, alle anderen in französischer Schreibweise.

Einbaumöglichkeit für das Heim-Rufgerät AF7800.

Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Mentioned in -- Original prospect or advert

Model page created by Manfred Rathgeb. See "Data change" for further contributors.
