Record 4 FE60004A

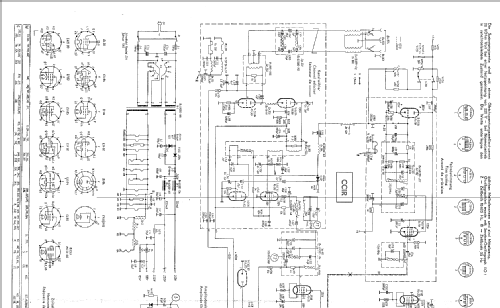

Record 4 FE60004A; Rafena Werke (ID = 172542) Television

Record 4 FE60004A; Rafena Werke (ID = 172546) Television

Record 4 FE60004A; Rafena Werke (ID = 172562) Television

Record 4 FE60004A; Rafena Werke (ID = 172578) Television

Record 4 FE60004A; Rafena Werke (ID = 172589) Television

Record 4 FE60004A; Rafena Werke (ID = 172591) Television

Record 4 FE60004A; Rafena Werke (ID = 172597) Television

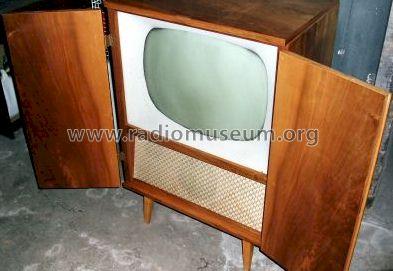

Record 4 FE60004A; Rafena Werke (ID = 229382) Television Record 4 FE60004A; Rafena Werke (ID = 229383) Television
Record 4 FE60004A; Rafena Werke (ID = 172541) Television Record 4 FE60004A; Rafena Werke (ID = 229384) Television
Use red slider bar for more.
Record 4 FE60004A; Rafena Werke (ID = 229382) Television
Rafena Werke: Record 4 FE60004A [Television] ID = 229382 312x386
Select picture or schematic to display from thumbnails on the right and click for download.
For model Record 4 FE60004A, Rafena Werke Radeberg, VEB; Radeberg (Ostd.):
EbayDE usersudlappen Item: 280001276414

Country:  Germany
Manufacturer / Brand:  Rafena Werke Radeberg, VEB; Radeberg (Ostd.)
Brand

VEB Rafena; Radeberg (Ostd.)
Year: 1960–1962 Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: ECC84 ECF82 EF80 ECL84 EABC80 EL84 ECC82 ECC85 EL86 EL36 EY88 DY86 B53G1
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Record 4 FE60004A - Rafena Werke Radeberg, VEB;
Dimensions (WHD) 620 x 550 x 420 mm / 24.4 x 21.7 x 16.5 inch
Notes Empfangsbereich: 10 Kanäle im VHF-Band I und III nach CCIR-Norm.
Jeder Röhrentyp nur einmal gelistet.
Source of data - - Data from my own collection
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Andreas Hahn. See "Data change" for further contributors.
