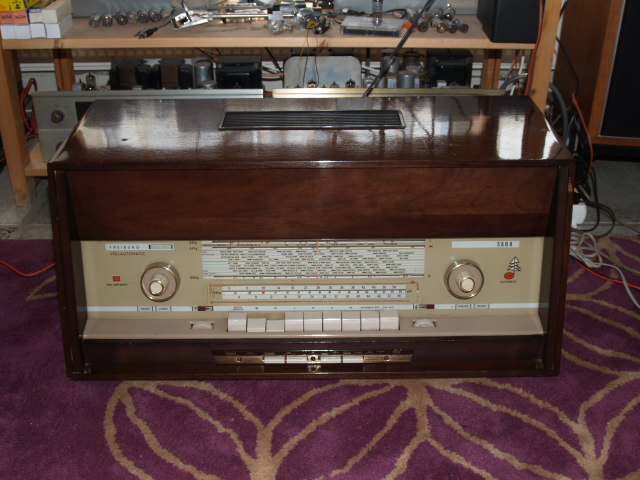

Freiburg Studio ; SABA; Villingen (ID = 1391336) Radio
SABA; Villingen: Freiburg Studio [Radio] ID = 1391336 932x708
Select picture or schematic to display from thumbnails on the right and click for download.
For model Freiburg Studio 1962, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: EC92 EC92 ECH81 EF89 EM84 EBF89 ECL80 EABC80 ECC83 EF86 EF86 ELL80 ELL80
Semiconductors (the count is only for transistors) E25C5 Tr.Gl.=Metal-rectif. RL232 RL232
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 10 AM circuit(s)     13 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 115-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Freiburg Studio [1962] - SABA; Villingen
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 700 x 305 x 310 mm / 27.6 x 12 x 12.2 inch
Notes

Technische Daten wie Saba Freiburg Vollautomatic 12 Stereo, jedoch Steuergerät ohne eingebaute Lautsprecher zum Anschluss von Lautsprecherboxen mit verschiedenen Kombinationsmöglichkeiten.

Das Saba Freiburg Studio des Jahrgangs 1962/63 ist an der hellen Skala vom Freiburg Studio des Jahrgangs 1964/65 mit gleicher Bezeichnung zu unterscheiden.

Abgleich (auch Steuerfilter)
Alignment (also automatic filter)

External source of data Erb
Source of data Handbuch VDRG 1962/1963


All listed radios etc. from SABA; Villingen
Here you find 1588 models, 1441 with images and 1084 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
SABA; Villingen: Freiburg Studio
Threads: 3 | Posts: 5
Hits: 4936     Replies: 2
Saba Freiburg studio search buttons does not function
Abbe de Groot
22.Jun.08
  1

Dear members,

Yesterday I buyed this great Saba Freiburg studio tube receiver. All seems to work fine, including the auto tuning correction function that correct for mistuning with the motor but the two search buttons who are lokated at the bottom of the radio and who are intend to search for the next strong station  does not function. I allready clean the contact but without any improvement. Is there anyone who know what may be the root cause of this?

Another related question, the motor becomes very hot in the automatic on position. Is this normal? Is ther something I can do to avoid this?

Any suggestion where to look will be appriciated.

Many thanks in advance,

Abbe

Attachments

Martin Renz
22.Jun.08
  2 You will find special advice in this article
At other models like Freiburg 7 and Freiburg 100 or 125 you will find more information about the tuning function and its repair.


Please post your questions in the future directly from the model page, I moved your post to the model page.
Dennis Daly
19.Jul.08
  3 Greetings!
 If, after following Herr Grund's and other's excellent advice there remains the problem, I ask the following:

 Have the pivot points of the mechanical linkages controlled by the auto tuning push buttons been checked and verified for absolute freedom of movement and full range of motion? (This mechanical binding seems to be a common problem with these newer (nach 1960) and similar models.)

 Will the motor activate if pressed for the 'schnellauf' (fast forward/ reverse) function?

 Also, have the small contacts at the rear of the remote control jack been checked to make sure they have continuity?
(This may present a "no search function" if a remote control unit had been installed for a length of time and has subsequently been unplugged from the receiver. Though the contacts consist of of silver, dust may accumulate between them, causing an "open" control circuit for the auto tuning (suchelauf) latch solenoid. )

 These two hints are for  common failures of the automatic tuning on the later models, including the "Studio."

 Good Luck with Repairing this fine receiver!

 D. Daly

Hits: 1852     Replies: 0
saba: ; Freiburg-Studio Sendersuchlauf
Marc Goeritz
14.Apr.06
  1 Eine genaue Beschreibung über Funktion und Reparatur des Sendersuchlaufs ist bei den Schaltbildern zu den Modellen Freiburg 7 und Freiburg 125 hinterlegt.
Mit freundlichen Grüßen
Marc Goeritz

Hits: 2259     Replies: 0
saba: ; Freiburg-Studio
Franz-Josef Haffner
11.Sep.03
  1

weitere techn. Unterlagen siehe Freiburg 12:

http://www.radiomuseum.org/dsp_modell.cfm?model_id=24359


SABA; Villingen: Freiburg Studio
