• Year
  • 1959/1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 22170

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     13 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220; 250 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

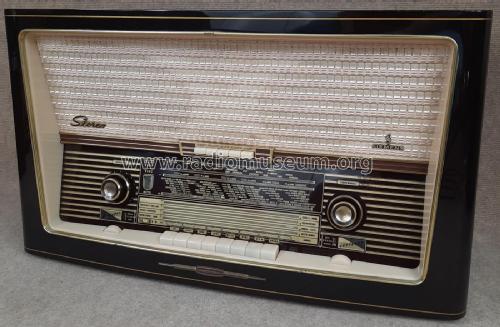

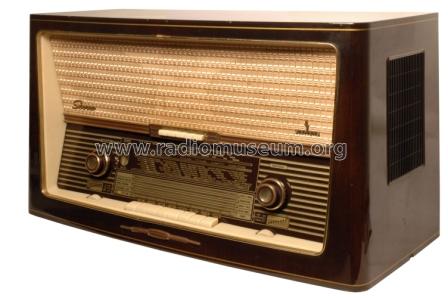

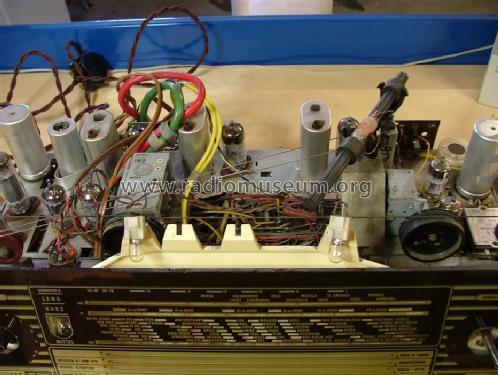

  • Model: Luxussuper H9 Stereo - Siemens & Halske, -Schuckert
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 650 x 380 x 280 mm / 25.6 x 15 x 11 inch
  • Notes
  • Stereo-NF-Verstärker 2× 5 W (für Stereo-Wiedergabe zusätzliche LS-Box notwendig); schaltbare Bandbreite; dreh- und abschaltbare Ferritantenne.
  • Net weight (2.2 lb = 1 kg)
  • 15 kg / 33 lb 0.6 oz (33.04 lb)
  • Price in first year of sale
  • 528.00 DM
  • External source of data
  • Erb

 Collections | Museums | Literature

Collections

The model Luxussuper is part of the collections of the following members.

 Forum

Forum contributions about this model: Siemens & Halske, -: Luxussuper H9 Stereo

Threads: 2 | Posts: 4

Guten Tag an alle Mitglieder des Radiomuseums

Bei meinem H9 zeigt die EM80 nichts an (auch keinen grünen Strich), wenn UKW gedrückt ist. Auf LW, KW und MW zeigt sie wie es sein soll.

Ich habe mehrere Röhren geprüft. Es tritt immer der gleiche Fehler auf.

Kann jemand helfen?

Frohe Pfingsten wünscht Ihnen
Ralf-Peter Borrmann

Ralf-Peter Borrmann, 07.Jun.14

Weitere Posts (3) zu diesem Thema.

Thank you to those who responded to my question about one of the channels not working.

Having dismantled and rebuilt the tone switch unit (not for the faint hearted!!), it still didn't work. Then I remembered that the ECC83 has TWO anodes - I'd only tested the voltage on the one nearest the output valve. Result? No volts! Cause? An open circuit 180k resistor in the anode feed. Sorted......

Moral of story - check ALL valve voltages and remember that valves which are effectively two valves in one have two of everything (almost!)!!

Won't get fooled again!!!


Bryan

Bryan McAlley, 20.Jan.10

Weitere Posts (1) zu diesem Thema.
