• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19458

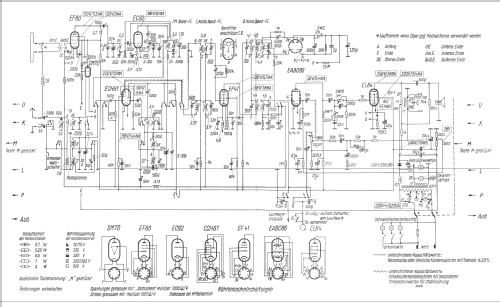

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

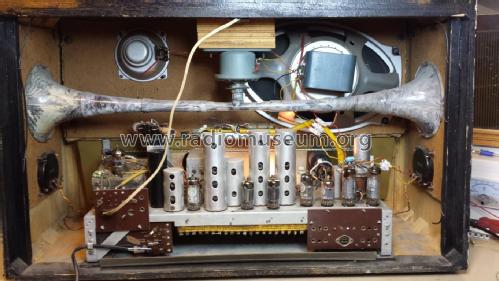

• Valves / Tubes
• EF80 EC92 ECH81 EF41 DM70 EABC80 EL84

• Number of Transistors

• Semiconductors
• E220C85

• Main principle

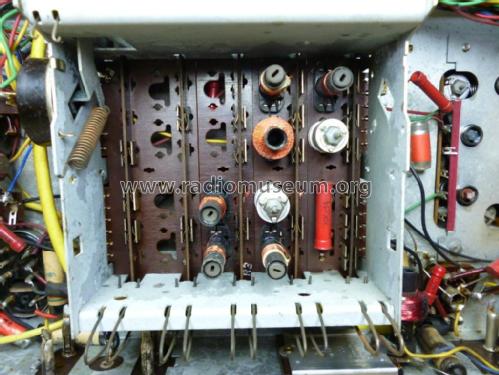

• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

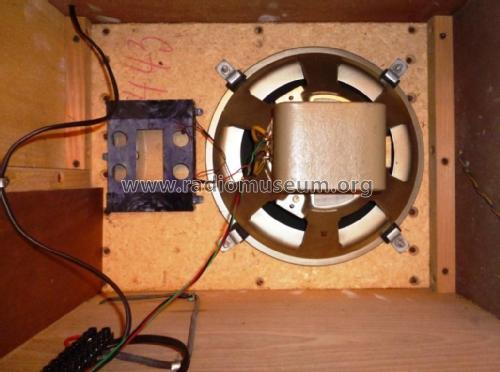

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

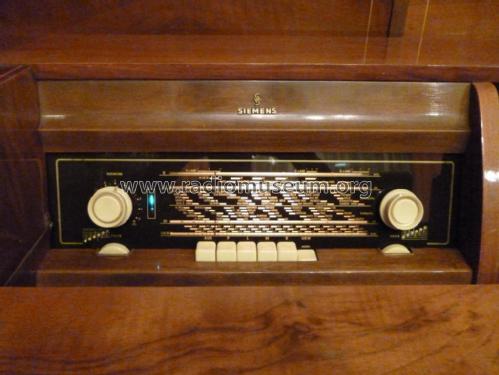

• Model: Musiktruhe 54 838W - Siemens & Halske, -Schuckert

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 1000 x 770 x 390 mm / 39.4 x 30.3 x 15.4 inch

• Notes

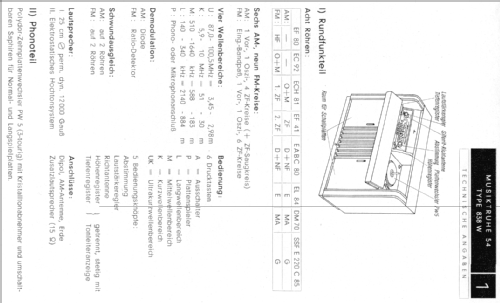

• Rundfunkteil: Qualitätssuper 54 (832W)
  Phonoteil: dreitouriger Plattenwechsler für 30, 25 und 17 cm Schallplatten, Kristallsystem.

  Wird im Katalog d. Rundfunk-Grosshandels 1953/1954 mit 1000,- DM geführt.

• Net weight (2.2 lb = 1 kg)
• 40 kg / 88 lb 1.7 oz (88.106 lb)

• Price in first year of sale
• 999.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1953/54

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 2514 models, 2111 with images and 1325 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
