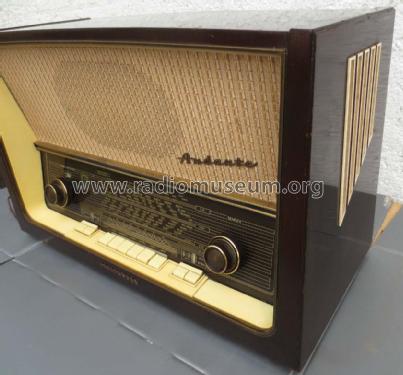

Andante 8; Telefunken (ID = 1850570) Radio
Telefunken: Andante 8 [Radio] ID = 1850570 1400x832
Select picture or schematic to display from thumbnails on the right and click for download.
For model Andante 8, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
111694971703 by willauchhaben10

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Andante 8 - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 590 x 360 x 260 mm / 23.2 x 14.2 x 10.2 inch
Notes

Technische Daten wie Operette 8, jedoch in modernerem Gehäuse.

Kurzwellenlupe. Eingebaute drehbare Ferritantenne. Eingebaute Dipolantenne, umschaltbar auf KW.

Net weight (2.2 lb = 1 kg) 11.3 kg / 24 lb 14.2 oz (24.89 lb)
Price in first year of sale 374.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1957/58
