Operette 6 HiFi-System Licensed by Armstrong; Telefunken (ID = 59243) Radio
Telefunken: Operette 6 HiFi-System Licensed by Armstrong [Radio] ID = 59243 931x667
Select picture or schematic to display from thumbnails on the right and click for download.
For model Operette 6 HiFi-System Licensed by Armstrong, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
US-Ausführung ; Sammlung Dale Steel, Ridgeland, Mississippi, USA

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner

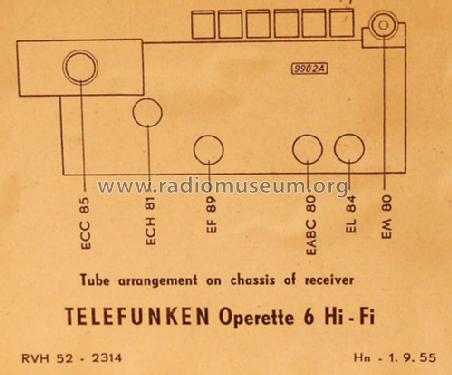

Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details

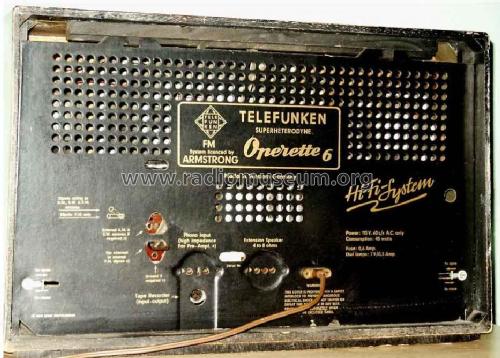

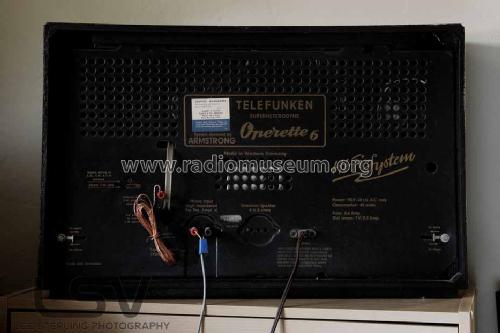

Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker 3 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Operette 6 HiFi-System Licensed by Armstrong - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 570 x 360 x 220 mm / 22.4 x 14.2 x 8.7 inch
Notes

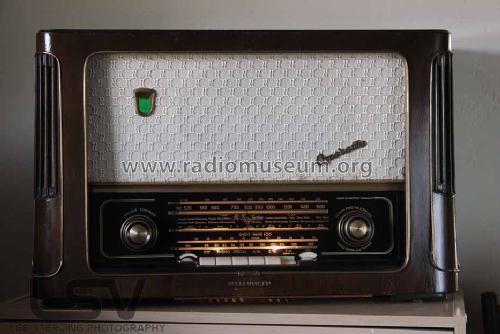

This Telefunken Operette is the export model of the Operette 6 from Germany, and was imported and distributed by American Elite, Inc., 7 Park Ave., New York, NY. It has the same wave bands, long waves here called "Special" 145-345 kc, SW from 16.5 - 50.5 meters, FM 88-108 mc. See the different scale to the domestic version and different power supply. The speakers are 7" x 10"and twice 3.25" in diameter.

Net weight (2.2 lb = 1 kg) 9.1 kg / 20 lb 0.7 oz (20.044 lb)

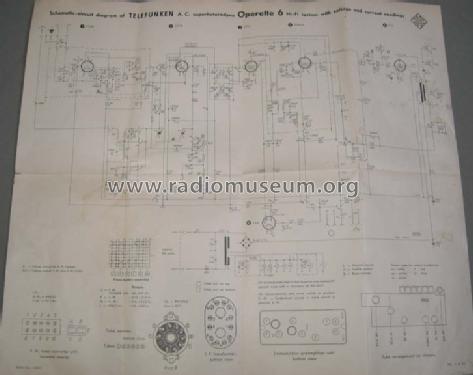

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-57, set 342, folder 12)

Model page created by Ernst Erb. See "Data change" for further contributors.
