• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 245839

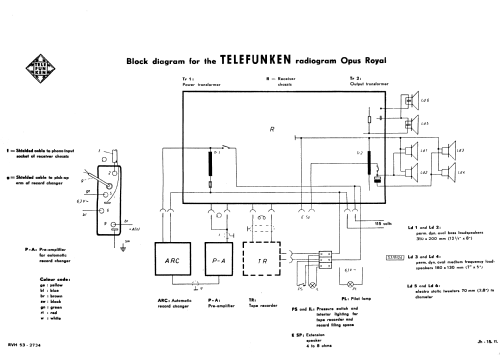

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EF89 EM80 EABC80 EC92 EL84 EL84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); Export model

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• 6 Loudspeakers

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Opus Royal Radiogram - Telefunken Deutschland TFK,

• Shape
• Console with Push Buttons.

• Notes

• Telefunken Opus Royal is an export model for the U.S.A.,
  it features four bands including FM up to 108 MHz and a push-pull AF amplifier.
  Record changer: TW560
  Radio chassis: Opus 7 USA

  See also the similar domestic model Telefunken Salzburg.

• Price in first year of sale
• 425.00 USD

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Christopher Kezar. See "Data change" for further contributors.
