• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 157942

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superhet with RF-stage; ZF/IF 460 / 10700 kHz; Export model

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 115 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Verdi - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Notes
• Telefunken Verdi is an export model.
  Chassis similar to Telefunken Operette 8.
  Supplier: American Elite, Inc., 7 Park Ave., New York, N. Y.

• Literature/Schematics (1)

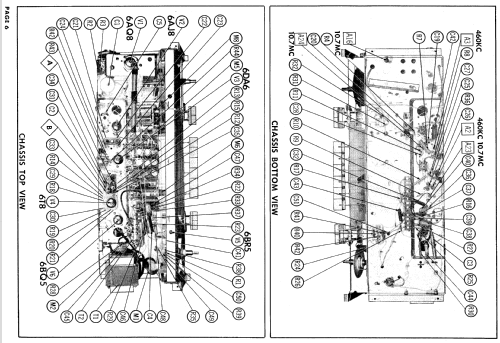

• Photofact Folder, Howard W. SAMS (Date 5-59, Set 443, Folder 14)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
