I've written an article regarding the history of the RCA BP-10 radio.  I have it available in both .PDF and Microsodt Word form.  It's about 1.5 Meg in size.  What's the most convenient method of forwarding in to the model administrator for review and eventual posting?

Thanks,

Joe Sousa
Joe Sousa
Editor
USA  Articles: 647
Schem.: 187
Pict.: 394
06.Aug.11 05:53

Count of Thanks: 39
Reply  |  You aren't logged in. (Guest)   2

Hello Tom:

I look forward to your article.

These instructions about mulipage pdf uploading may be of help.

Regards,

-Joe

Michael Watterson

Editor
IRL  Articles: 920
Schem.: 632
Pict.: 2433
16.Oct.11 17:01

Count of Thanks: 32
Reply  |  You aren't logged in. (Guest)   3

Did this article ever get uploaded?  I don't see it here: List of PDFs

RCA BP10: Earliest Compact Portable?

I think the BP10 was one of first B7G based Miniature valve radio sets. So compact for 1941 compared to the "boxes" in UK of 1950s. Though was the Marconi or Marconiphone P17b (1947) a design  via HMV / RCA connection? It's a very similar outer shape though different chassis layout and single B114 combo 67V/1.5V battery pack (later called a 70V/1.5V). One version has used MOV X17 W17 ZD17 N17 and other DK91, DF91, DAF91 and DL91 (both essentially the RCA 1940 1R5 1T4 1S5 1S4 series used in the BP10). Marconi appears to have made the Ever Ready Personal B, or perhaps supplied the chassis with DK91, DF91, DAF91 and DL91 and box fitted by Ever Ready as the internal front panel is different. The 3S4 is a centre tapped 1S4, thus the later European equivalent is the DL92.

There may be no connection at all apart from similar "form factor" and  tube line up between the 1941 RCA BP10 and 1947  Marconi/Ever Ready P17B/Personal B. As LW was important in UK and not in US, the Ever Ready B2 in 1948 used higher inductance oscillator coil and frame aerial for LW and the "wave band" switch for MW simply adds two parallel inductors on the aerial coil and oscillator coil to give approximately the B model MW tuning range.

Similar form factor 1941 radios with the RCA 1R5 1T4 1S5 1S4 design were the Crosley Commuter and Emerson mini portable.

"Communications for April 1941"

The Personal Radio Receiver

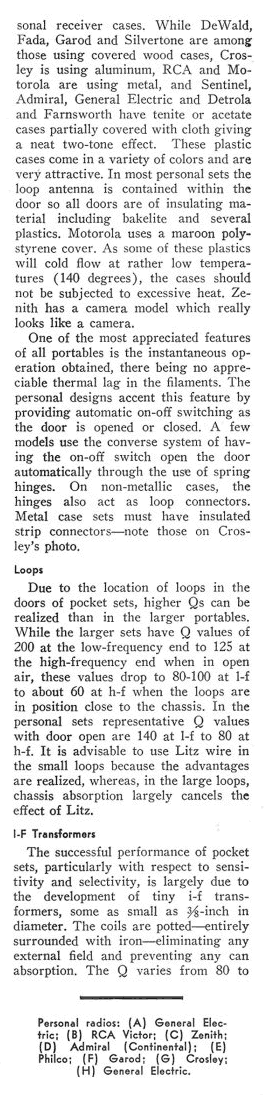

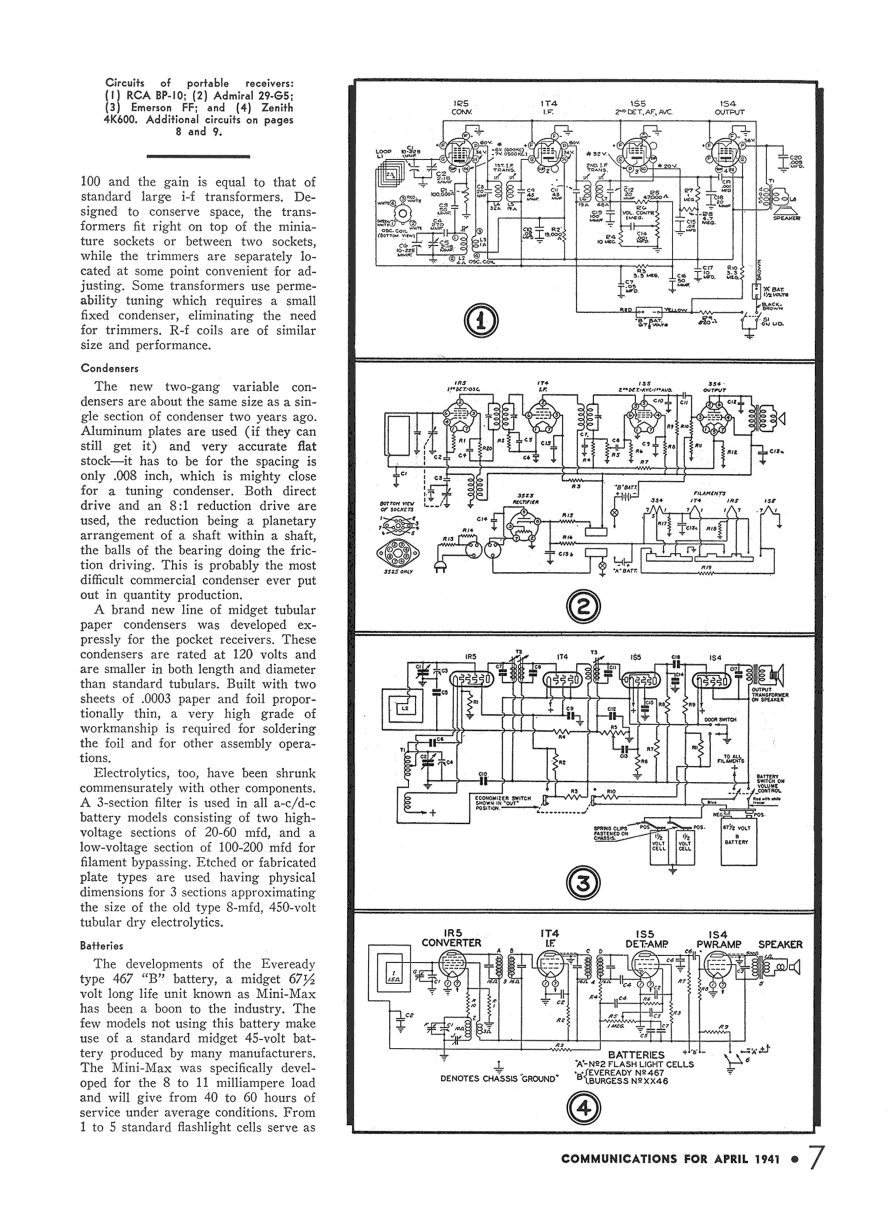

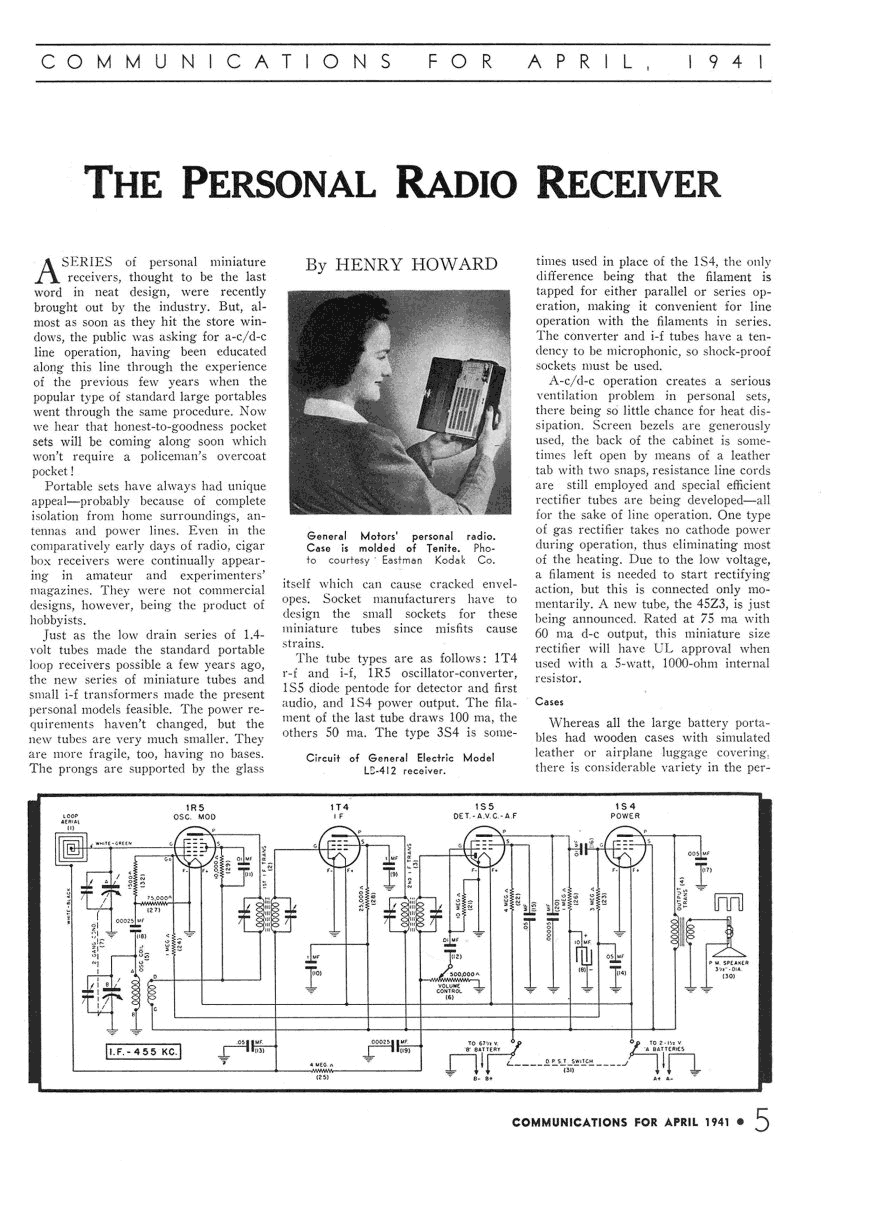

This is a six page article discussing with drawings or photos with schematics of:

GE LS-412

GE (a 2nd similar set pictured)

RCA BP10

Zenith 4K600

Philco

Emerson FF series (FF411 includes "economiser" switch). The Emerson mini-portable is illustrated (are these the same or different models? The text does discuss Emerson "models" differences )

Farnsworth CT59

Farnsworth KD57

Fada mentioned?

Admiral (Continental) 29-G5

Crosley Commuter

Garod BP20

Motorola A1

Dewald 564

Dewald 410

Air Castle (45V)

Case Materials used listed: Wood, Plastic, Bakelite, Polystyrene, Aluminium, Tenite, Acetate, "metal", "cloth"

Most of the mains / battery sets use filaments parallel on battery and series on mains (7.5V). The Motorola series on Battery. The 7.5V versions (mains or battery) need to use the 3S4 (later in 1947 the DL92) centre tapped version of IS4

Some models in the text or schematics are not those illustrated.

10 photos/illustrations of radios, 10 schematics. All 1941!



Did the WWII kill these off or was performance and battery life too poor in such small packages?

Then during WWII we had the Miniature Receiver Type 31/1 (from 1943) aka "Sweetheart three tube IT4 regenerative radio designed by a Norwegian in UK, dropped behind German lines. It used 2 x 15V hearing aid batteries like the B121 in AVO meter and a 4.5V "flat" torch battery (still only just available for cycle lamps. Short and long "brass" strips on top) and the miniature 1943 Polish designed (in UK) Miniature Receiver OP-3 Type 30/1 a dual band superhet presumably using the RCA 1R5 1T4 1S5 1S4 design (battery arrangement unknown to me).

After WWII RCA an attractive Aluminium style model RCA 8BX6 globetrotter and the  1954 RCA Victor 6BX6A.  The 1951 Braun Piccolo is slightly  similar style to the 8BX6. Many attractive German and Philips portable tube sets, often with LW, MW, SW and later many with VHF too. Yet most UK models for entire 1950s are large Rexine (leatherette cloth) covered wooden boxes. Even after the 1/2 LT current DK96, DF96, DAF96 and DL96 introduced. Ever Ready, Vidor, Pye/PAM/Invicta, Marconi, Ferranti, Bush etc.

Personal Radio Receiver 1

Click each part of page separately for full size (jpg for "photos" to fit < 200k)





(click on above for full size)



Attachments:

This article was edited 17.Oct.11 15:24 by Michael Watterson .

Konrad Birkner † 12.08.2014
Konrad Birkner † 12.08.2014
Officer
D  Articles: 2335
Schem.: 700
Pict.: 3657
18.Oct.11 14:09

Count of Thanks: 31
Reply  |  You aren't logged in. (Guest)   4

Just a humble addition to the amazing article above:

According to M.B.Schiffer "The Portable Radio in American Life" The first radios which made use of the new "miniature" tubes are the RCA BP-10 and the Sonora Candid (so called "camera style", slightly bigger than the "coat pocket radios")

In Germany only one "coat pocket" model of the flip top style was produced: the 1950 Metz "Baby".



Michael Watterson

Editor
IRL  Articles: 920
Schem.: 632
Pict.: 2433
18.Oct.11 15:07

Count of Thanks: 26
Reply  |  You aren't logged in. (Guest)   5

Thanks for the confirmation on the RCA BP10. There is also model above there (labelled "E" a Philco) deliberately designed to look just like camera (with the two knobs on top).

However while they are small, few of the radios in the article would win a beauty contest. Germany and (Philips Colette 1956, Annette etc)  made many beautiful styled portables in the 1950s where "koffer" (suitcase) is unfair. The UK mostly made small "suitcase" (briefcase, hat box, valise, "jewel box" and attaché case) wooden boxes with Rexine in the period.  Example Braun Piccolo 1951 Also models from Akkord, Grundig and others. I'm no expert on German 1950s portables though.

As mentioned earlier there are only a very few  well styled very portable UK models (the Marconi/Ever Ready mentioned earlier is the only "pocket" model.  The "Romac Portable" of 1946 is an exception (I see you remark it is even the first UK model apart from Wartime Covert Radio with B7G valves in UK). The Romac is very like the Philco "camera" styled model "E" above. What happened to case design in UK? The perspex Pye "sunrise" portable was recalled (because the case broke easily or because of "rising sun" motif?). One theory is that the British Public wanted "Wooden boxes" and was not concerned with a more miniature design. Wood for cases in late 1950s and early 1950s was in short supply which is why many Bakelite table models produced, even Bakelite TV sets as in the late 1940s the Makers did not even reach production quota allowed by Government in UK due to shortage of wood for cabinets!



Not featured in the Communications April 1941 Article:

Candid
KG-80
(1940)
1R5 1T4 1S5 1S4
Marconiphone
P17B (1947)
X17 W17 ZD17 N17


Marconiphone
P17B (1948)
DK91 DF91 DAF91 DL92

Ever Ready
Personal B
(1947)
(Marconi P17B)
DK91 DF91 DAF91 DL92
Ever Ready B2
(adds LW)
(1950?)
DK91 DF91 DAF91 DL92
Metz Baby4
(1950)
DK91 DF91 DAF91 DL92





This article was edited 19.Oct.11 01:15 by Michael Watterson .

Tom Warnagiris
Tom Warnagiris

USA  Articles: 13
Schem.: 1
Pict.: 34
18.Nov.11 00:08

Count of Thanks: 25
Reply  |  You aren't logged in. (Guest)   6


I apologize for the delay in getting back to you.  I’ve recently learned that the article that I was intending to send to you will be available on the Internet next year.  Antique Radio Classified (ACR) published it in their February 2011 issue.  I had planned to revise the article for you so as not to conflict with what was published by ACR.  But, since it will be online as part of ACRs 2011 archived articles, I will not ask that the Radio Museum host it.

Michael Watterson

Editor
IRL  Articles: 920
Schem.: 632
Pict.: 2433
29.Oct.12 21:03

Count of Thanks: 22
Reply  |  You aren't logged in. (Guest)   7

The Roberts R77 is 1957, maybe a little larger, strange as there were transistor "personal sets" by 1957.

4: DK96 DF96 DAF96 DL96 So total 125mA LT rather than 250mA

MW and LW



The Vidor CN353 is 1947 so contemporary with the Marconiphone/Ever Ready Personal (both probably made by Plessey).

4: DK91 DF91 DAF91 DL92 (1R5, 1T4, 1S5, 3S4) 250mA LT

Very similar to BP10 concept, but MW & LW



The Championette from 1949

4: 1R5 1T4 1S5 3S4

Again similar to the RCA BP10 Personal concept. 67V HT

250mA 1.5V LT, MW only



Marconiphone P20BX and also K12 P20B 1948

Again HT is 67.5 or 69V to reduce HT size

4: X17 W17 ZD17 N17 (1R5, 1T4, 1S5, 3S4)

A bit fatter than the earlier P17B / Ever Ready B but LW & MW



Stromberg-Carlson 4P17 from 1947 in Australia

4: 1R5 1T4 1S5 3S4

Same reciepe, MW only of course



It's puzzling that the "Personal" set didn't have a reappearance with 25mA Dx96 series and ferritte rod from 1953 to 1956/1958  (First Transistor sets 1955, common by 1958) without the awkward flip lid aerial. The cheap supermarket DAB sets have only 4hours to 5 hours battery life compared to 25 to 60 hours possible with a "Personal" tube radio!





This article was edited 29.Oct.12 23:30 by Michael Watterson .

Michael Watterson

Editor
IRL  Articles: 920
Schem.: 632
Pict.: 2433
04.Nov.12 01:20

Count of Thanks: 25
Reply  |  You aren't logged in. (Guest)   8





This isn't a comprehensive list. Some are listed as >8 " portables and some as smaller portables.

All are 1T4, 1R5, 1S5, but may vary in output tube. Some manage to fit in a mains supply too. 67V and 1.5V D cell (or two in parallel!) is common rather than 90V HT to reduce battery size.


Candid 1940
KG-80







RCA 1940

BP-10 Personal





Westinghouse 1940

WR-682A

(yes, identical to BP10)


Allied-radio Corp 1940?

Knight B-10506

45V HT



Lafayette 1940



Lafayette 1940 ?







 Admiral 1941 ?

28-G5

67V HT and 110V AC mains



Dewald 1941

564






Montgomery 1941

14WG-438






Zenith Radio 1941

"Poketradio" 4K600P

"Poketradio" 4K600R

"Poketradio" 4K600W



Zenith Radio 1941

"Poketradio" 4K600 Ch=4B01





Detrola 1941

378






Emerson 1941

432 Power-Mite







General Motors Radio  1941

Pocket Portable 985775





Admiral Radio 1941

Bantam 29-G5





Admiral 1941

29 Ch = G5




Admiral 1941

27-G4






Emerson 1941

379 Personal Radio Ch= DU





Emerson  1941

380 Personal Radio Ch= DU





Farnsworth 1941





Firestone 1941

S7397-1 Air Chief Ch= E442








Fada 1941?

Series 33 L33






Fada 1941

C34







USA motorola
Radio 1941 S $

3A5







Sentinel 1941







General Electric 1942

LB-502

(also a 1941 model LB-642, but no clear photo)



Crosley 1942?

45 Commuter Ch= 45





Lafayette 1942








RCA 1946  (many versions)

54B1

54B2

54B3



Emerson 1946

508





RCA  1947

54B5 "The Solitaire"





Airking 1948

494




Airking 1948

A-410






Automatic Radio Co.  1948/49

B44 Tom-Thumb Bike Radio

67V HT



Automatic Radio Co. 1948

TomThumb Camera





Automatic Radio Co.  1949

TomThumb Buddy
