Super AT462W ECH81

Super AT462W; EAW, Elektro- (ID = 95454) Radio

Super AT462W; EAW, Elektro- (ID = 95456) Radio
Super AT462W; EAW, Elektro- (ID = 10895) Radio Super AT462W; EAW, Elektro- (ID = 10897) Radio
Super AT462W; EAW, Elektro- (ID = 10898) Radio Super AT462W; EAW, Elektro- (ID = 24090) Radio
Super AT462W; EAW, Elektro- (ID = 24091) Radio Super AT462W; EAW, Elektro- (ID = 24092) Radio
Super AT462W; EAW, Elektro- (ID = 29629) Radio Super AT462W; EAW, Elektro- (ID = 57724) Radio
Super AT462W; EAW, Elektro- (ID = 149036) Radio Super AT462W; EAW, Elektro- (ID = 149037) Radio
Use red slider bar for more.
Super AT462W; EAW, Elektro- (ID = 10895) Radio

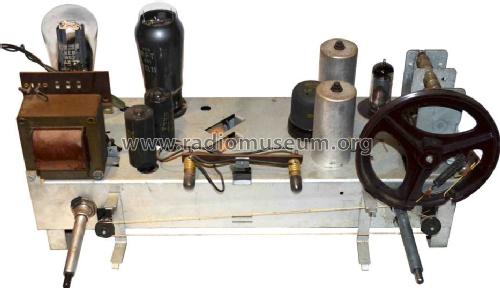

EAW, Elektro-: Super AT462W [Radio] ID = 10895 886x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super AT462W ECH81, EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)

Country:  Germany
Manufacturer / Brand:  EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)
alternative name

AEG Treptow (AT, EAT); Berlin || EAT (El.-App. Treptow)
Brand
AT Apparatewerk Treptow
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 EBF11 ECL11 AZ11
Semiconductors (the count is only for transistors) or. Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Super AT462W [ECH81] - EAW, Elektro-Apparate-Werke,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 335 x 250 mm / 18.1 x 13.2 x 9.8 inch
Notes

Siehe auch: erste Variante mit ECH11.

Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Price in first year of sale 275.00 Mark
Source of data Radiokatalog Band 2, Ernst Erb

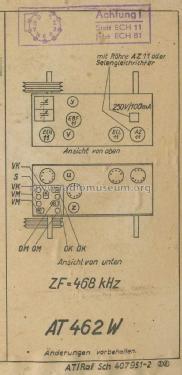

Circuit diagram reference Lange Schaltungen der Funkindustrie, Buch 3
Mentioned in Funkgeschichte der GFGF (9282)


All listed radios etc. from EAW, Elektro-Apparate-Werke, VEB, (ex AEG Treptow); Berlin-Treptow (Ostd.)
