Telerama P716

Telerama P716; SABA; Villingen (ID = 66588) Television

Telerama P716; SABA; Villingen (ID = 66589) Television

Telerama P716; SABA; Villingen (ID = 66613) Television

Telerama P716; SABA; Villingen (ID = 66614) Television

Telerama P716; SABA; Villingen (ID = 66615) Television

Telerama P716; SABA; Villingen (ID = 66616) Television

Telerama P716; SABA; Villingen (ID = 66617) Television

Telerama P716; SABA; Villingen (ID = 66618) Television

Telerama P716; SABA; Villingen (ID = 66619) Television

Telerama P716; SABA; Villingen (ID = 66620) Television
Telerama P716; SABA; Villingen (ID = 1287461) Television Telerama P716; SABA; Villingen (ID = 1287462) Television
Telerama P716; SABA; Villingen (ID = 1287463) Television Telerama P716; SABA; Villingen (ID = 1689180) Television
Telerama P716; SABA; Villingen (ID = 1796703) Television Telerama P716; SABA; Villingen (ID = 1796074) Television
Telerama P716; SABA; Villingen (ID = 1718885) Television Telerama P716; SABA; Villingen (ID = 1718887) Television
Telerama P716; SABA; Villingen (ID = 2108420) Television Telerama P716; SABA; Villingen (ID = 2108293) Television
Use red slider bar for more.
Telerama P716; SABA; Villingen (ID = 1287461) Television

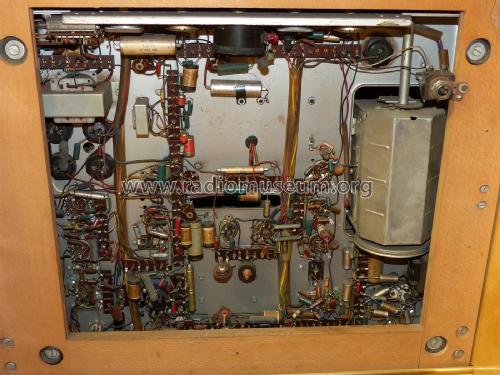

SABA; Villingen: Telerama P716 [Television] ID = 1287461 1400x1974
Select picture or schematic to display from thumbnails on the right and click for download.
For model Telerama P716, SABA; Villingen:
Gerät steht im Iserlohner Museum für Handwerk und Postgeschichte.

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1957–1960 Category: Television Receiver (TV) or Monitor
Valves / Tubes 23: PCC88 PCF82 EF80 PL83 PL82 DF91 ECL80 PCL82 PL36 PABC80 PY83 EY86 DY80 MW6-2
Semiconductors (the count is only for transistors) E250C300-V125C300
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.

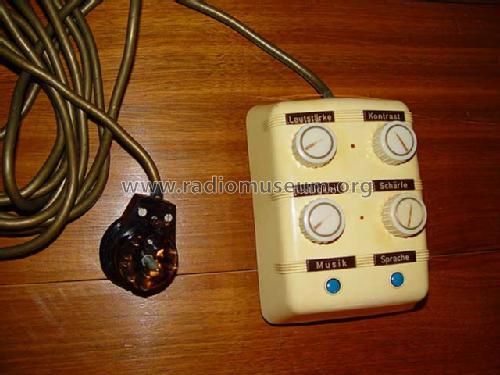

Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 110-125; 220 Volt
Loudspeaker 2 Loudspeakers / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Telerama P716 - SABA; Villingen
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 640 x 950 x 530 mm / 25.2 x 37.4 x 20.9 inch
Notes Beim Telerama P716 von SABA sind hier aufgeführte Röhren teilweise mehrfach vorhanden.

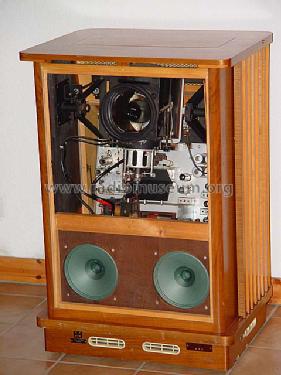

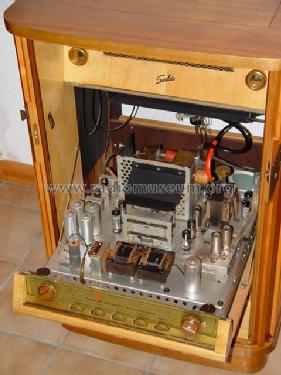

Projektionsfernseher mit Schmidt-Optik.
Bilddiagonale auf zugehöriger Projektionswand: 1,6 m.

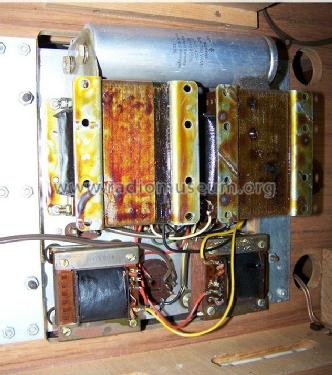

Eingebauter Spannungskonstanthalter (Transduktor aber nicht ein Magnetverstärker, sondern als Drosseln gebaut) bei SABA "Magnetischer Spannungs-Gleichhalter" genannt (siehe sch2).
VHF-Bereich Kanal 1-12.
Net weight (2.2 lb = 1 kg) 71 kg / 156 lb 6.2 oz (156.388 lb)
Price in first year of sale 2,890.00 DM
Collectors' prices
Source of data HdB d.Rdf-& Ferns-GrH 1957/58
Mentioned in Funkschau (0357)

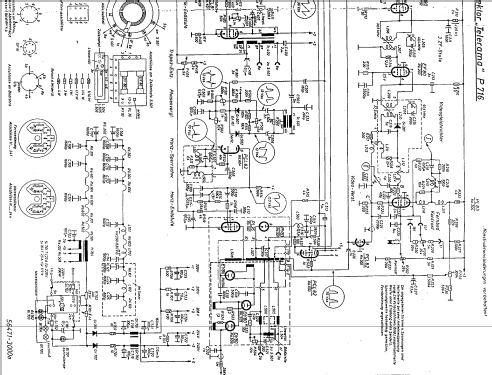

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
