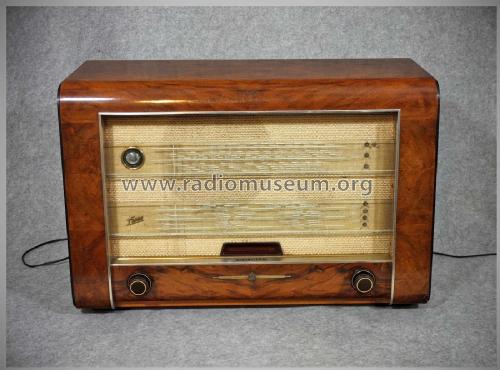

Telefunken: T5001 [Radio] ID = 2329729 1400x1037
Select picture or schematic to display from thumbnails on the right and click for download.
For model T5001, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
D; Telefunken Deutschland; Model T5001 - 1

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: EF11 ECH11 EBF15 EF12 EM11 EF80 ECH11 EAA11 EL12
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superhet with RF-stage; ZF/IF 472/10700 kHz
Tuned circuits 8 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: T5001 - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 650 x 430 x 350 mm / 25.6 x 16.9 x 13.8 inch
Notes Flutlichtskalen; im Gegensatz zum T5000: Klangregler Höhen und Tiefen mit Anzeige in der Schallwand. 3KW- und 2 MW Bereiche. Variable Bandbreitenregelung.
Net weight (2.2 lb = 1 kg) 22.5 kg / 49 lb 9 oz (49.559 lb)
Price in first year of sale 890.00 DM
Collectors' prices
Source of data Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb
Mentioned in Funkgeschichte der GFGF (9501)
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3395 models, 2955 with images and 1944 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Telefunken: T5001
Threads: 2 | Posts: 6
Hits: 2898     Replies: 4
telefunken: T5001 ;
Alessio Castagnini
14.Jul.11
  1

Hello friends, someone know if tweeter of this radio is a piezo tweeter?

Let me know.

Thanks a lot!

Bye

Bernhard Nagel
14.Jul.11
  2

Hi  Alessio,

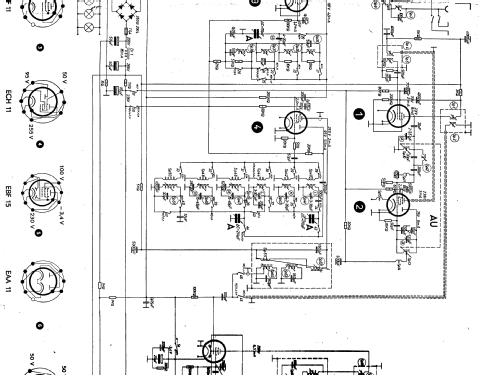

according to the schematic, the Telefunken T5001 uses a piezo tweeter. The former model T5000, however, was equipped with a dynamic (PM) tweeter.

Regards,
Bernhard

Alessio Castagnini
14.Jul.11
  3

Thanks a lot mate, have you or can you make a pictures of where piezo tweeter in T5001 is connected? I have receive the radio with one wire of the tweeter disconnected, I have connected it where I think must go, I have schematic of the radio, but tweeter doesn't sound for me, radio sound too close on treble. If the problem is the tweeter what can I do? I think that repair it or find another one in good condition is not easy.

Thanks a lot!

Bye

Alessio Castagnini
24.Jul.11
  4

Hello, please help me for find a Telefunken T-5001 piezo tweeter.

Thanks a lot!

Bye

Alessio Castagnini
28.Aug.11
  5

Finally piezo tweeter works, thanks!

Bye

Alessio


Hits: 2384     Replies: 0
telefunken: T5001 (T 5001);
Rudolf Bengesser
04.Jul.09
  1



Tipp:

Auch bei diesem Gerät lässt sich die (UKW-) Empfangsleistung merkbar verbessern, wenn man die EF 80 dr. EF 183, bzw. 184 ersetzt.


Telefunken: T5001
