• Country
• Germany

• Manufacturer / Brand
• Rafena Werke Radeberg, VEB; Radeberg (Ostd.)

• Year
• 1962 ?

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 72772

• • Brand: VEB Rafena; Radeberg (Ostd.)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• ECC84 ECF82 EF80 EABC80 EL84 ECC82 ECC85 EL36 DY86

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

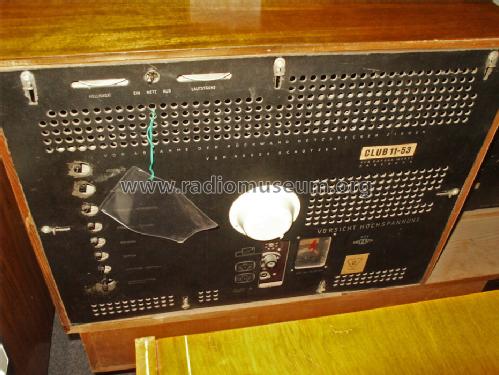

• Model: Club 11 - Rafena Werke Radeberg, VEB;

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1225 x 937 x 420 mm / 48.2 x 36.9 x 16.5 inch

• Notes

• Röhren nicht alle aufgeführt. Enthält Fernsehchassis "Record", Rundfunk-Chassis des "Oberon-Stereo", Stereo-Plattenspieler "Ziphona P10-36" mit 16/33/45/78 U/min.

  In der Truhe zwei nach unten abstrahlende Tieftöner, in den beiden Stereo-Boxen (315x220x120 mm³) je ein Mittelton-Lautsprecher LP471/1 und ein Hochtonlautsprecher LP554-6.

• Net weight (2.2 lb = 1 kg)
• 75 kg / 165 lb 3.2 oz (165.198 lb)

• Price in first year of sale
• 3,500.00 Mark

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Mentioned in

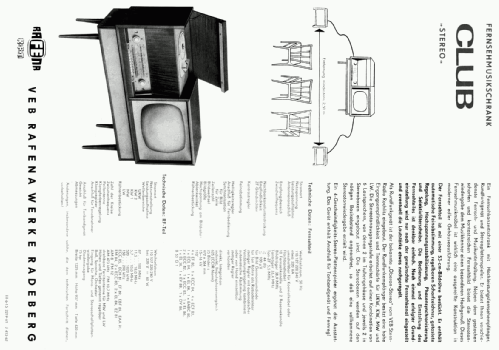

• -- Original prospect or advert

• Author
• Model page created by Michael Seiffert. See "Data change" for further contributors.
