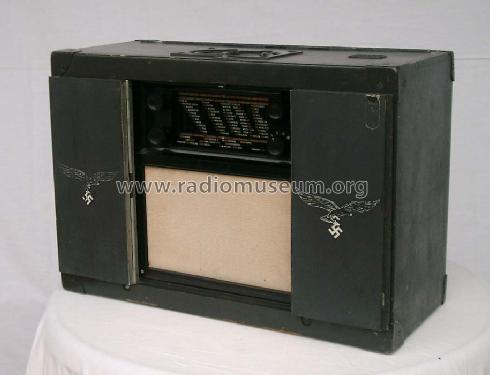

For model Luftwaffen-Koffer K32GWB, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DCH11 DF11 DAF11 DL11 UY11
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details

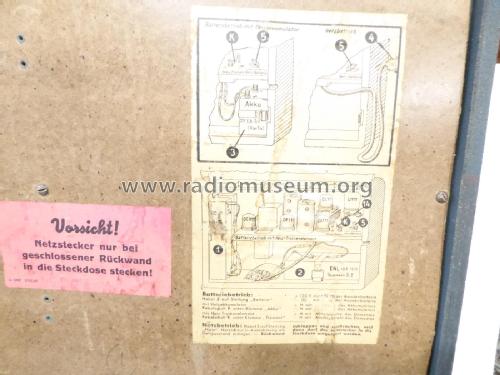

Power type and voltage Line / Storage batteries (perhaps also batteries) / ACDC 220 / 1.25 or 2.0 & 90 or 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Luftwaffen-Koffer K32GWB - Siemens; D S.& Halske / S.
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 450 x 310 x 160 mm / 17.7 x 12.2 x 6.3 inch
Notes Parallelgerät zum Nora K62.
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb

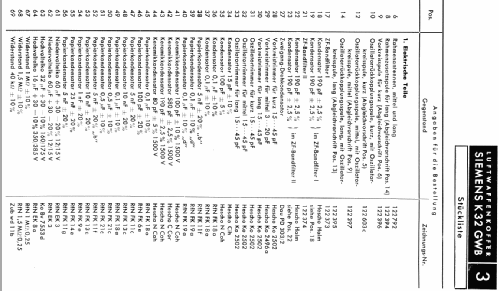

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Funkgeschichte der GFGF (8863)
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.


All listed radios etc. from Siemens; D (S.& Halske / S. Electrogeräte)
Here you find 2387 models, 1960 with images and 1246 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Siemens; D S.&: Luftwaffen-Koffer K32GWB
Threads: 6 | Posts: 20
Hits: 1469     Replies: 3
siemens: K32GWB;
John OBrien
01.Feb.15
  1

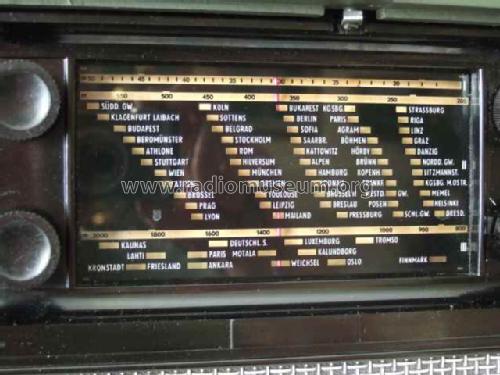

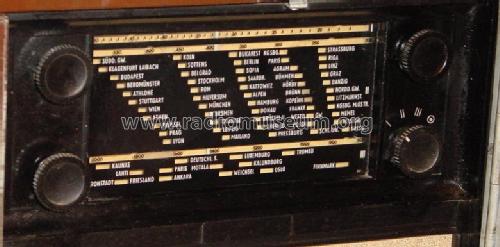

Does anyone have a dial string diagram for the K32?

Dietmar Rudolph
02.Feb.15
  2

John,

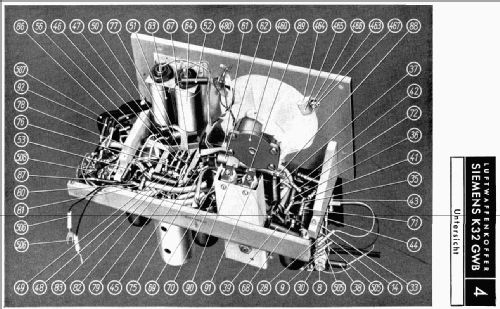

unfortunately, the service manual gives no string diagram. However, if you look closer to the picture given in the service manual, it can be seen how the string should be.

This picture may be down loaded in normal size, and you will find it beneath the schematics.

Regards,

Dietmar

Donald Cochrane
11.Feb.15
  3

Did you get your dial string problem fixed?  I have a K32.  Maybe I can help.



Regards,

Donald



John OBrien
11.Feb.15
  4

Thanks, we finally figured it out.


Hits: 1617     Replies: 4
siemens: K32GWB;
Donald Cochrane
22.Sep.12
  1

My on/off volume control is broken.  Can I use a standard on/off volume control with this radio?  The schematic does not give a value.

Thank you,

Donald

Meine on/off volume control ist gebrochen. Kann ich mit einer Standard on/off volume control mit diesem Radio? Der Schaltplan nicht geben einen Wert ein.

Reiner Scholz
22.Sep.12
  2

The value is 1,5 MegOhm, at least this is what my Ohmmeter reads. Please notice the unusual mounting by using a clamp ring.

Reiner

Donald Cochrane
22.Sep.12
  3

I saw the clamp.  I'm not sure how to get it off but that's next.  Finding something to replace it with is going to be the difficult part.  I've never seen this control before.

Thank you for the help.

Regards,

Donald



Reiner Scholz
22.Sep.12
  4

Hello Donald, those volume control combined by an integrated or separately mounted ON OFF switch where very common. Not common is the way it is mounted.

Keeping it close to the origin, take care to find one with a push - pull shaft. (In these days when batteries where used, the closing front door shut off battery power automatecally) Your "Poti"  has a through going shaft with a small disk wich operates the switch. You even could use one with integrated switch ore one operating with a turn-around-shaft. Much more important is, to find a log Poti, not a linear working one.

I am going to send you some pictures of what I have in my grab box.

Reiner

Donald Cochrane
22.Sep.12
  5

I really appreciate your help.  This radio is in such good shape I am excited to restore it.  I am going to restuff the capacitors so they look original.  This is what this group is all about.



Regards,

Donald


Hits: 1435     Replies: 0
siemens: K32GWB;
Donald Cochrane
30.Mar.12
  1

My K32 is in very nice condition but it is missing the metal piece at the top of the right door.  This peice makes the door stay closed.  If someone has a junked cabinet, perhaps I can buy this peice.

Regards,

Donald

I am in need of a replacement on/off volume switch for this model.  Mine is defective and not repairable.

Regards,

Donald




Hits: 2462     Replies: 4
siemens: K32GWB;
Ton Zitman
05.Jun.11
  1

Hallo liebe Sammlerkollegen,

Habe gerade  eine Siemens (?) Luftwaffenkoffer wie Model K32GWB aufgetrieben mit abweichende Röhrenbestückung - instatt die übliche D..11-Batterie-Stahlröhrenserie + UY11 sind 2x UCH4, UBL1 und UY11 verbaut worden. Sieht alles unverbastelt und original aus... Gab es diese Ausführung auch ab Werk? (Siemens oder Nora?). Wäre froh etwas von euch zu vernehmen!

Liebe Sammlergrüsse,

Ton Zitman NL

Wolfgang Bauer
05.Jun.11
  2

Bitte um Fotos, mit der Bestückung kann es nur ein reiner Netzempfänger sein.

MfG. WB.

Ton Zitman
06.Jun.11
  3

Hallo Herr Bauer,

Ja, in dieser Weise kein Batteriekoffer, sondern ein reiner Allstromempfänger mit eine damals übliche Röhrenbestückung. Vielleicht gab es Engpässe mit Beschaffung der Batterie-Stahlröhren? Anbei ein Bild des Innenlebens. Nicht original ist bloss der LS-Trafo linksunten auf dem Schallwand.

Vielen Dank , Ton

Attachments

Wolfgang Bauer
07.Jun.11
  4

Hallo Herr Zitman,

für mich sieht Ihr Gerät umgebaut aus.
Die Röhrenfassungen sind geschraubt, die g1-Anschlüsse sehen auch nicht professionell aus.
Der Heizkreis müßte komplett umgearbeitet sein.
Wie groß ist denn R91? Originalwert 1700Ω.
Wenn jetzt alle Röhrenheizungen in Serie geschalten sind, muß R91ca. 700Ω haben.

MfG. WB.

Ton Zitman
07.Jun.11
  5

Hallo Herr Bauer,

Ja, das stimmt. Serie- Heizwiderstand ist etwa 700 Ohm. Es wäre vielleicht Schade das Radio wieder nach Originalzustand zurück zu bauen, weil es eben von einem Profi gemacht worden ist.... Bin trotzdem neugierig ob weitere Ubauten bekannt sind - also Sammlerkollegen: wenn ja - gerne Bescheid!

Vielen Dank und Grüsse aus NL,

Ton Zitman




Hits: 2036     Replies: 3
siemens: K32GWB; Wishing to reconnect loose wire for UY11 tube
Samuel Baker
02.Apr.11
  1

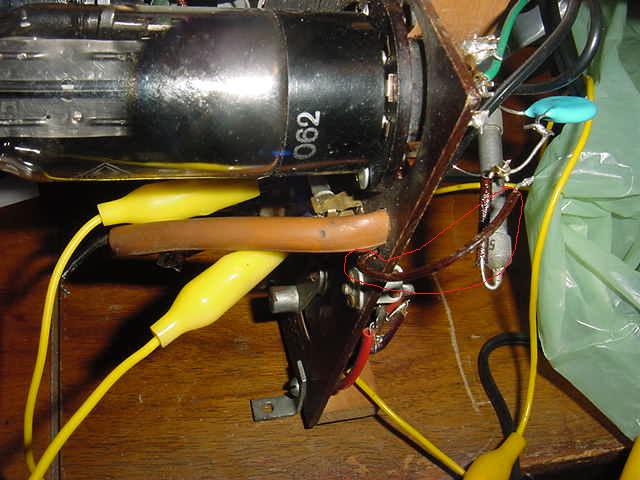

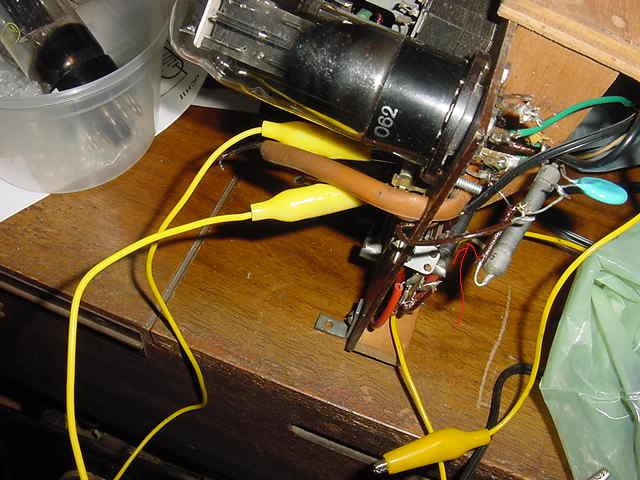

While removing my K32 from its case, a wire has come loose from its connection. It is a brown wire that you can see in the attached photo.  I cannot determine where on the UY11 this brown wire attaches. It goes back into the radio into a wire bundle that I do not wish to disturb. Can you assist me, in determining where this wire connects?

Attachments

Reiner Scholz
04.Apr.11
  2

Dear Samuel,

I am having a NORA chassis wich is the forerunner of SIEMENS K32.

At the place shown on your pictures a sreened cable is leading to a coupling of wich I believe, it´s a grammophon coupling. The screen is going to the center, the inside cable to one of the round jacks.

At your chassis there should be another single cable, violet or blue, coming through a hole just beside the big one and leading to the 2nd jack.



Regards

Reiner



Reiner Scholz
04.Apr.11
  3

Hi again,

I just discovered, you are not talking about the thick brown cable but the smaller one marked by a red lasso and arrow. However the answer remains the same. :-)

Reiner



Samuel Baker
05.Apr.11
  4

Hello Reiner,

Thank you very much for the information.  Of course, as soon as I read your reply, I remembered seeing the wire go the gramaphone connection in the past!

Best Regards,

Sam Baker




Hits: 2979     Replies: 0
Siemens K32-GWB
Luigi Collico
27.Sep.06
  1

My name is Luigi.

Some time ago I bought a cabinet  (without chassis and speaker) of the receivers Siemens K32-GWB and I restored it.

Now, I'm looking for its chassis (even if without some tubes or other parts) and its speaker.

Thanks for any answers.

Best regards

Luigi


Siemens; D S.&: Luftwaffen-Koffer K32GWB
