Venus 821W

Venus 821W; Loewe-Opta; (ID = 16875) Radio

Venus 821W; Loewe-Opta; (ID = 16876) Radio

Venus 821W; Loewe-Opta; (ID = 16877) Radio

Venus 821W; Loewe-Opta; (ID = 2366444) Radio

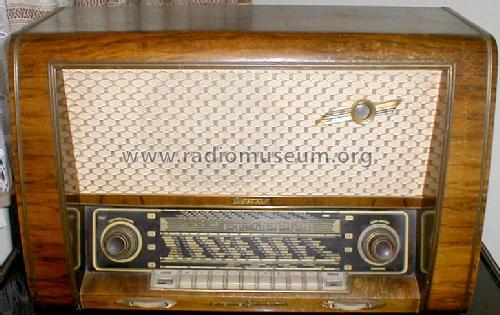

Venus 821W; Loewe-Opta; (ID = 2370243) Radio Venus 821W; Loewe-Opta; (ID = 39558) Radio
Venus 821W; Loewe-Opta; (ID = 39559) Radio Venus 821W; Loewe-Opta; (ID = 29536) Radio

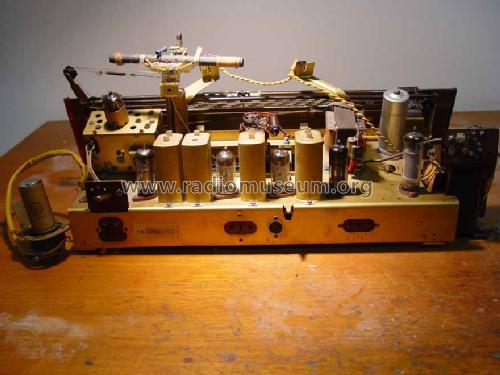

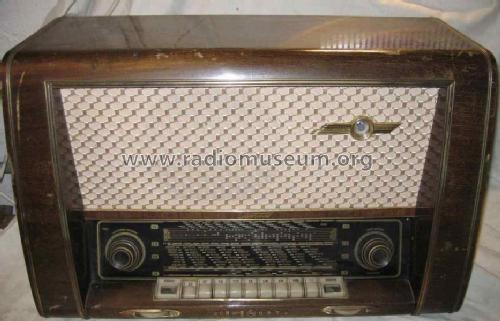

Venus 821W; Loewe-Opta; (ID = 97666) Radio Venus 821W; Loewe-Opta; (ID = 271277) Radio

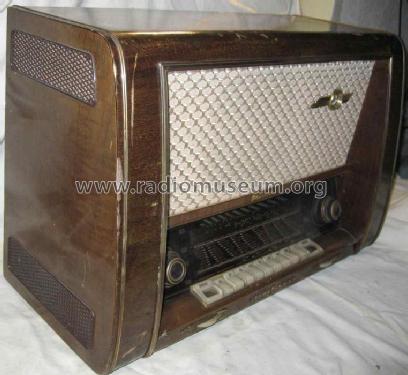

Venus 821W; Loewe-Opta; (ID = 271278) Radio Venus 821W; Loewe-Opta; (ID = 491439) Radio
Venus 821W; Loewe-Opta; (ID = 491440) Radio Venus 821W; Loewe-Opta; (ID = 491441) Radio
Use red slider bar for more.

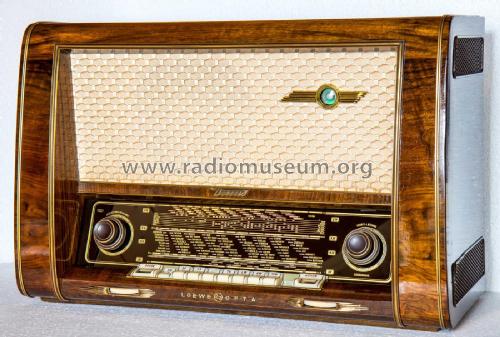

Venus 821W; Loewe-Opta; (ID = 2370243) Radio
Loewe-Opta;: Venus 821W [Radio] ID = 2370243 1400x944
Select picture or schematic to display from thumbnails on the right and click for download.
For model Venus 821W, Loewe-(Opta); Deutschland

Country:  Germany
Manufacturer / Brand:  Loewe-(Opta); Deutschland
alternative name

Löwe Radio
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EF89 EM4 EABC80 EL84
Main principle Super-Heterodyne (Super in general); ZF/IF 464/10700 kHz
Tuned circuits 11 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker 3 Loudspeakers
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Venus 821W - Loewe-Opta; Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 640 x 415 x 285 mm / 25.2 x 16.3 x 11.2 inch
Notes Fortschalttaste für Normal-/3D-Tonwiedergabe; drehbare Ferritantenne.
Net weight (2.2 lb = 1 kg) 14.1 kg / 31 lb 0.9 oz (31.057 lb)
Price in first year of sale 389.00 DM
Collectors' prices
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
